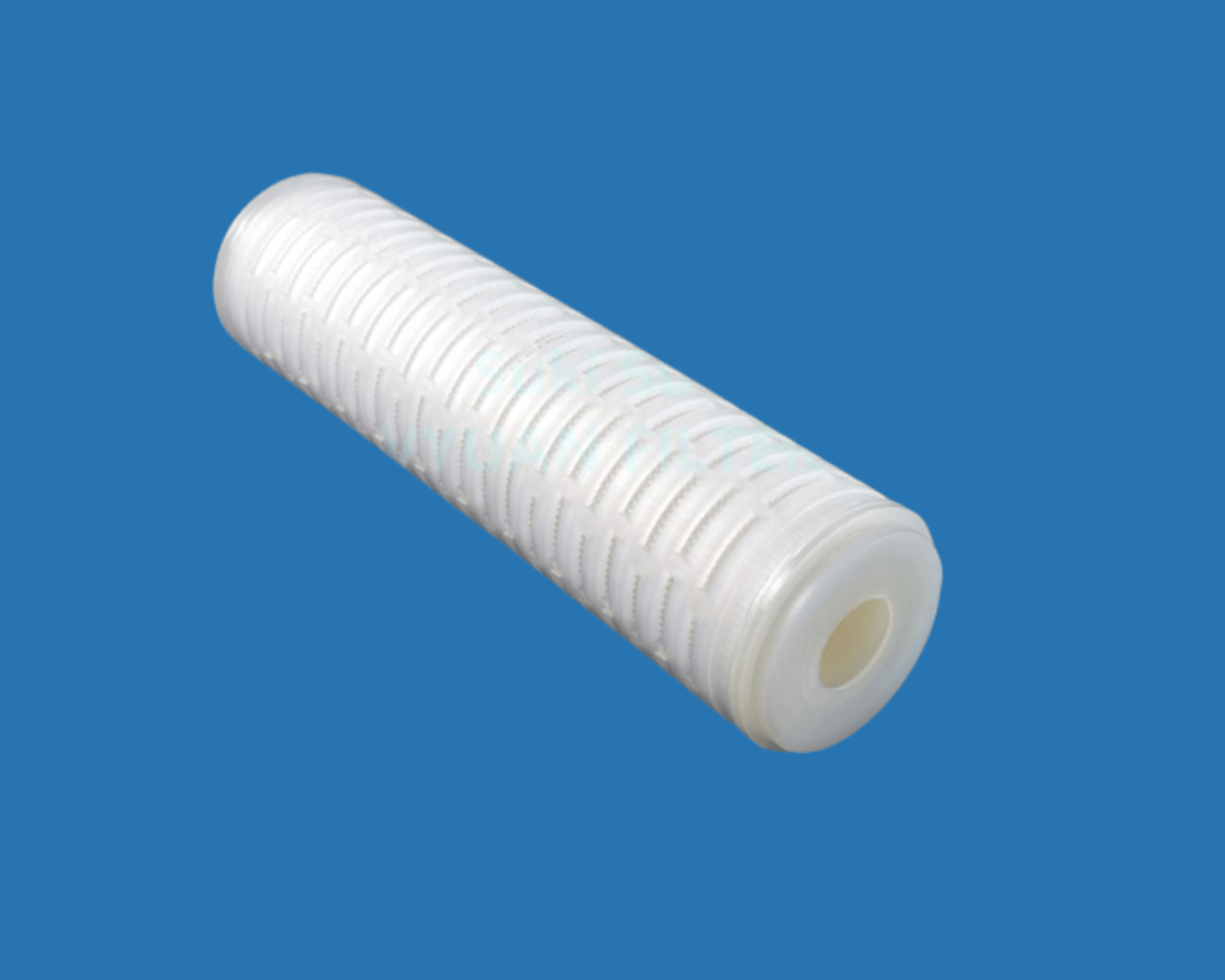

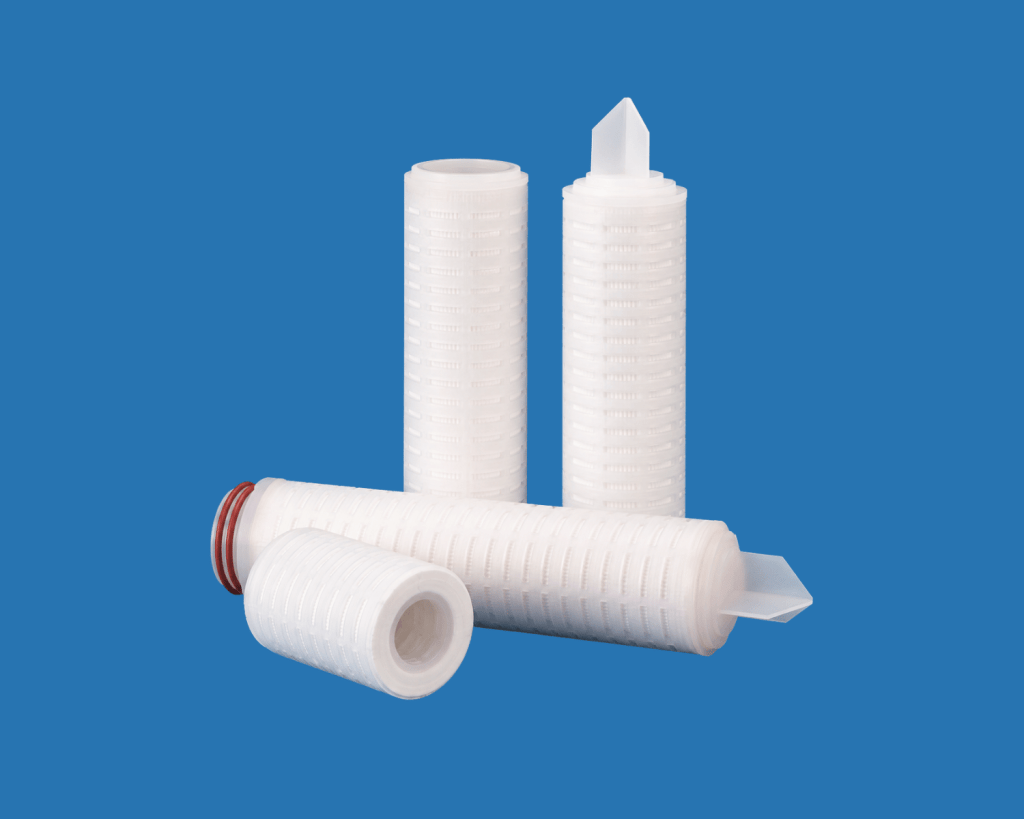

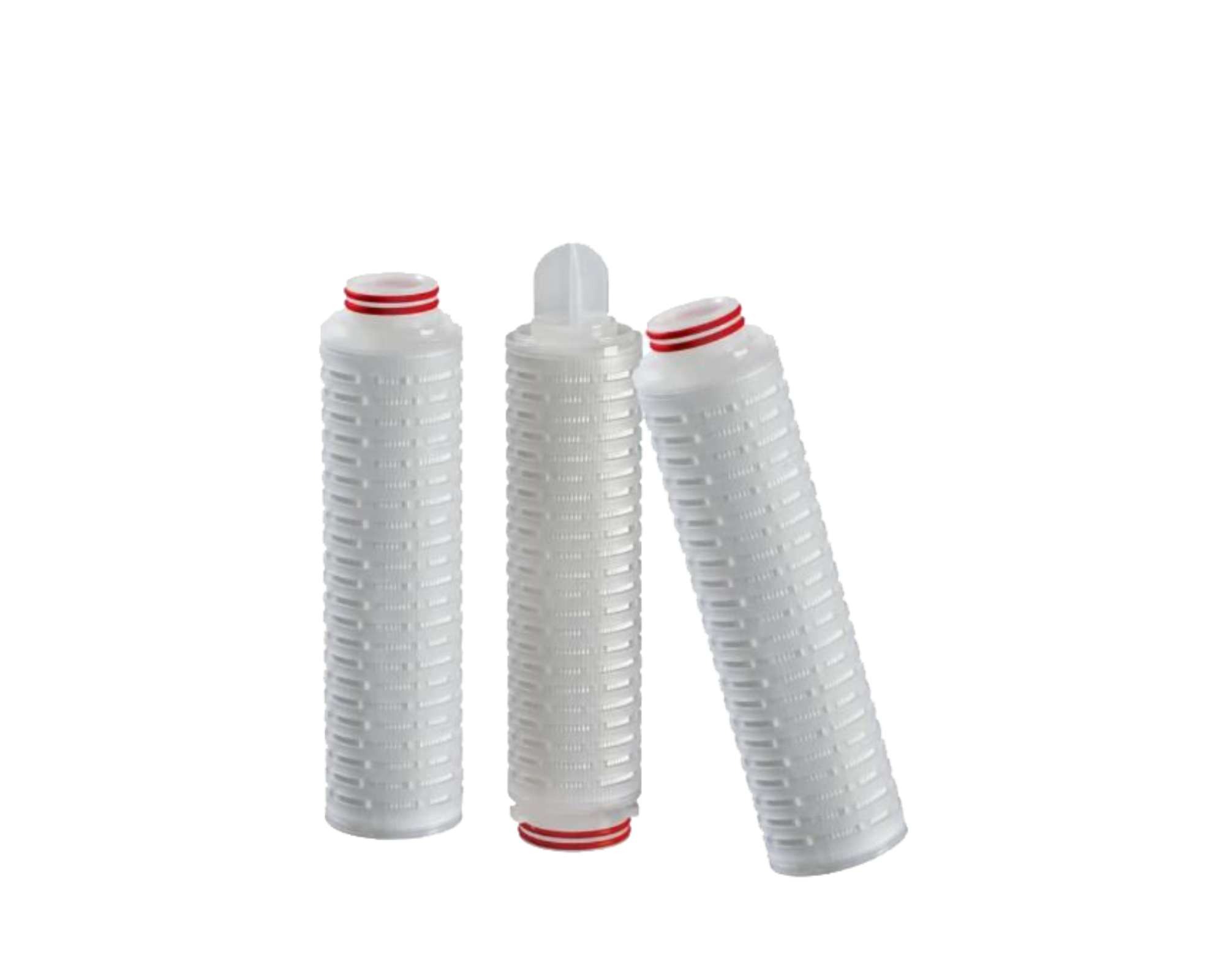

Steri-PRO PE Series PES Membrane Filters
Manufactured from high-purity polyethersulfone (PES), these sterile filters offer exceptional flow rates and low protein binding, making them ideal for a wide range of applications
STERIPRO PE SERIES PES MEMBRANE FILTERS
Trinity Pure-BOND Resin Bonded Filter Cartridges feature an advanced manufacturing process that produces a rigid graded density structure that allows the filter to withstand extreme viscosity and temperatures without deformation or collapse.
PES MEMBRANE FILTERS
Steri-PRO PE series Polyether sulfone Sterilizing grade PES Membrane Filters Designed for demanding applications in the pharmaceutical, biotech, and other critical industries, Steri-PRO PE Series PES Membrane Filters adhere to the highest quality standards. These filters are rigorously tested for biocompatibility, meeting the requirements of USP 29 Biological Test for Plastics and complying with CFR 21 regulations
PES Sterile filters Manufactured from high-purity polyethersulfone (PES), these sterile filters offer exceptional flow rates and low protein binding, making them ideal for a wide range of applications, including:
- Sterile filtration of aqueous solutions
- Protein and cell culture media
- Clarification
- Parenteral drug filtration
- Buffer and reagent filtration
High-Purity Solutions for Critical Applications
Filter Specification
| Category | Specification |
|---|---|
| Media | Polypropylene (PP) |
| Inner Core | Polypropylene (PP) |
| End Caps | Polypropylene (PP) |
| Cage | Polypropylene (PP) |
| Removal Ratings | 0.2, 0.45, 1, 2.5, 5, 10, 20, 25, 40, 50, 100 Micron |
| O-Rings / Gaskets (SOE) | Buna-N, EPDM, Silicone, Viton, Teflon Encapsulated Viton O-Rings |
| Dimensions | |
| Nominal Lengths | 9.75", 10", 20", 30", 40" |
| Diameter (ID / OD) | 1.1" (28 mm) / 2.7" (70 mm) |
| End Connections | DOE (Standard) / SOE (Optional) |
| Operating Conditions | |
| Maximum Operating Temperature | 80°C |
| Maximum Change-Out Differential Pressure | 75 PSID (5.2 bar @ 21°C); 40 PSID (2.8 bar @ 80°C) |
| Recommended Change-Out Differential Pressure | 35 PSID |
