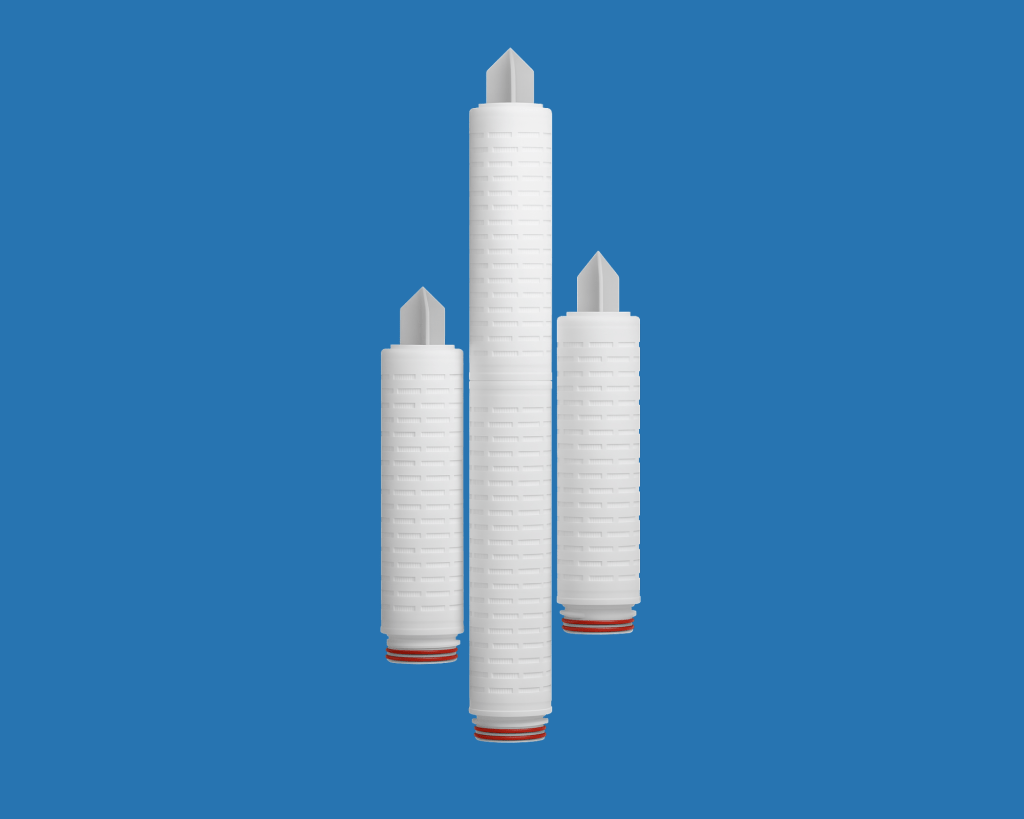

Trinity Steri-PRO PV
Series PVDF Membrane Filters
Trinity Steri-PRO PV series are designed for high-flow rate applications, offering superior filtration performance. These sterile filters efficiently remove bacteria and unwanted particles, ensuring exceptional product purity.
PURE BOND RESIN BONDED FILTER CARTRIDGES
Trinity Pure-BOND Resin Bonded Filter Cartridges feature an advanced manufacturing process that produces a rigid graded density structure that allows the filter to withstand extreme viscosity and temperatures without deformation or collapse.
STERI-PRO PV SERIES PVDF MEMBRANE FILTERS
Trinity Steri-PRO PV series PVDF Membrane Filters are designed for high-flow rate applications, offering superior filtration performance. These sterile filters efficiently remove bacteria and unwanted particles, ensuring exceptional product purity.
Key Features & Benefits
Trinity Steri-PRO PV Series PVDF Membrane Filters: Sterile FIltration
Filter Specification
| Category | Single Layer | Double Layer |
|---|---|---|
| Media | Single Layer PVDF Membrane | Double Layer PVDF Membrane |
| Support Media | Polypropylene | Polypropylene |
| Cage / End Caps | Polypropylene | Polypropylene |
| Core | Polypropylene | Polyester |
| Adaptor | Polypropylene | Polypropylene |
| Gasket / O-Rings | Silicone, EPDM, Viton, NBR, Teflon Encapsulated Viton, Teflon Encapsulated Silicone | |
| Dimensions | ||
| Nominal Lengths | 5", 10", 20", 30", 40" | |
| Outside Diameter | 2.7" (68.5 mm) | |
| Inside Diameter | 1.3" (33 mm) | |
| Filtration Area | ≥ 0.62 m² | ≥ 0.55 m² |
| Operating Conditions | ||
| Maximum Differential Pressure | 5.2 bar (Forward) / 2.1 bar (Reverse) @ 25°C | |
| Maximum Temperature | 82°C @ 1.7 Bar | |
| Autoclave | 124°C for 30 min (30 Cycles) / 134°C for 30 min (20 Cycles) | |
| Steam In-Place |
124°C for 30 min (30 Cycles) / 134°C for 30 min (20 Cycles) Pressure Drop ≤ 0.5 Bar |
|
