STERI-PRO CP SERIES CAPSULE FILTERS
Manufactured using high-quality membrane media and polypropylene construction, STERI-PRO CP Series Capsule Filters deliver excellent particle retention, high flow rates, and broad chemical compatibility while ensuring contamination-free filtration.

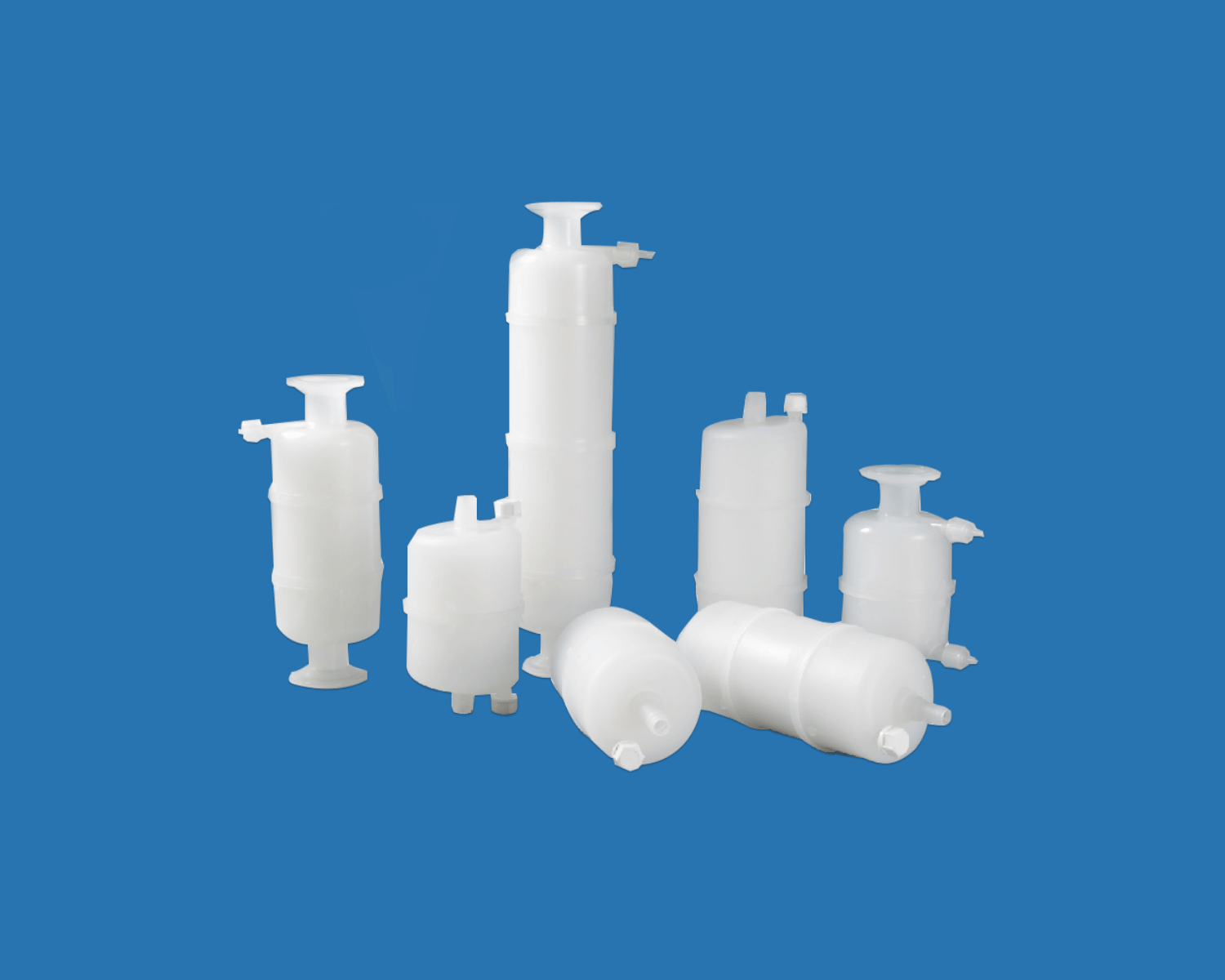

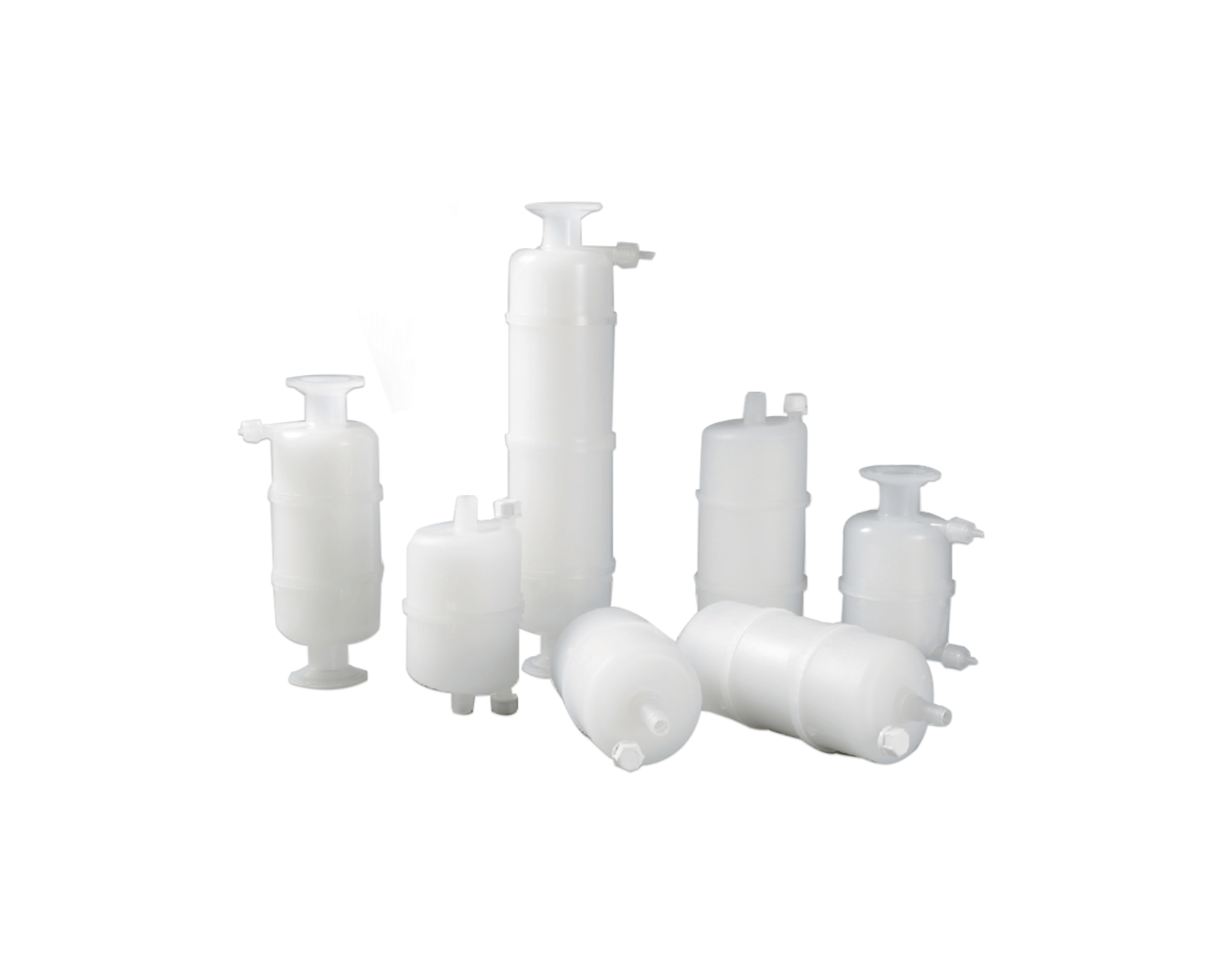

STERI-PRO CP Series Capsule Filters
Manufactured using high-quality membrane media and polypropylene construction, STERI-PRO CP Series Capsule Filters deliver excellent particle retention, high flow rates, and broad chemical compatibility while ensuring contamination-free filtration.
STERI-PRO CP SERIES CAPSULE FILTERS
TRINITY Steri-PRO CP Series Capsule Filter Technology is a compact filter assembly that is designed for filtration of small volume batches. Compact Capsule Filters applications are Small Volume Parenteral (SVP), Pharmaceutical / Biological Fluids, Ophthalmic solutions, filtration of developer, Fine Chemicals, Coatings and DI water.
Steri-PRO Compact Capsule Filters provide excellent retention of particulate matter and bio-burden reduction / sterile filtration at relatively higher flow rates and offers consistent & reproducible filter performance.
Steri-PRO Capsule Filter Technology are constructed from all Polypropylene body and hence provide superior chemical resistance & durability in process filtration applications.
Key Features & Benefits
STERI-PRO CP SERIES CAPSULE FILTERS
Material & Operating Specifications
| Category | Specification |
|---|---|
| Support Material | Polypropylene |
| Filter Media | Polypropylene, Polyethersulfone (PES), PTFE, PVDF, Nylon |
| Shell, Cage & End Caps | Polypropylene / HDPE |
| Dimensions | |
| Length | 4", 6", 8" |
| Diameter | 2.5" (64 mm) |
| Operating Conditions | |
| Maximum Differential Pressure | 60 PSI (4.1 bar) @ 25°C |
| Maximum Operating Temperature | 80°C |
Applications
- Pharmaceutical manufacturing
- Biotechnology processing
- Laboratory filtration
- Small batch production
- Buffer and reagent filtration
- Sterile liquid filtration
- Chemical filtration
- Food & beverage processing
- Cosmetics manufacturing
- Pilot plant applications
