Charge-PLUS Lenticular FIilter Cartridges
TRINITY Charge Plus Lenticular Filters positively Charged Cellulose depth filters, are formulated to meet the performance demands of biopharmaceutical and biotech applications.
TRINITY CHARGE-PLUS LENTICULAR FILTER CARTRIDGES
TRINITY Charge Plus Lenticular Filters positively Charged Cellulose depth filters, are formulated to meet the performance demands of biopharmaceutical and biotech applications.
TRINITY CHARGE-PLUS LENTICULAR FILTER CARTRIDGES
TRINITY Charge Plus Lenticular Filters positively Charged Cellulose depth filters, are formulated to meet the performance demands of biopharmaceutical and biotech applications. The Charge Plus Lenticular Filters media utilizes mechanical and electro-kinetic adsorptive capture mechanisms to remove particulate matter, micro-organisms, colloids, and pyrogen from critical process streams.
TRINITY Charge Plus Lenticular Filter Cartridges can provide on-site trial assistance to validate the performance of these Charge Plus Lenticular Filter Cartridges in new processes and applications. The Pharmaceutical Grade filter modules are manufactured to procedures described in a Drug Master File (DMF) on record at the National Center for Drugs and Biologics.

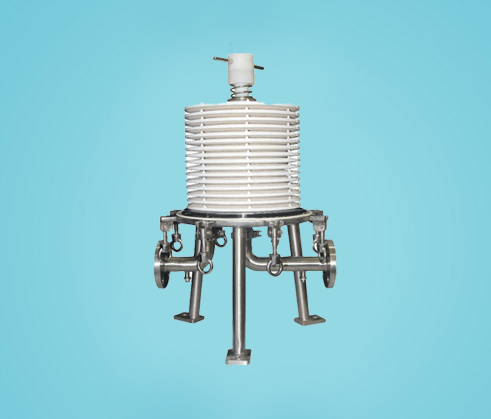

A Zeta Plus filter, alternative
| Property | Details |
|---|---|
| Media | Cellulose Fibre with Inorganic Filter Aids |
| Cartridge Bands | Stainless Steel |
| End Caps | Polypropylene (PP) |
| O-Rings / Gaskets (SOE) | Ethylene Propylene, Neoprene, Nitrile, Silicone, Viton |
| Grade | 10, 11, 12, 13, 14, 15, 16, 17 |
| Recommended Flow Rate | 0.5 to 1 GPM/ft² |
| Property | Details |
|---|---|
| Nominal Lengths | 20, 40 & 60 inches |
| Diameter (ID / OD) | 3” (76 mm) / 6.5” (165 mm) |
| End Connections | DOE (standard) / SOE (optional) |
| Max Operating Temperature | 80°C |
| Max Change Out Differential Pressure | 50 PSID (3.5 bar) |
| Recommended Change Out Differential Pressure | 35 PSID (2.5 bar) |
